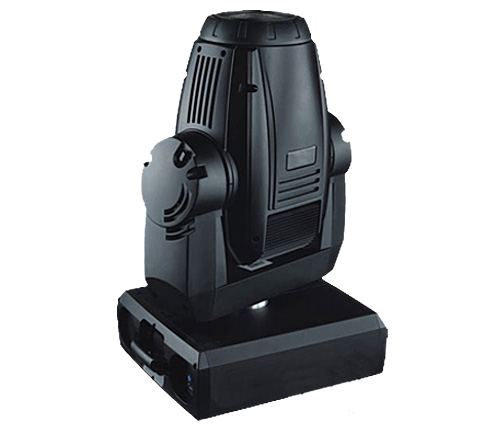

Model:S-2314

Technical parameters

Voltage: AC220-240 v / 110 v, 50 to 60 hz

Total power: 800 w bulb: HMI575W

Insurance: to be a color temperature: 6000 k

Channel: 16 DMX channels

Fixed design: design of 7 + white

Automatic rotation pattern: six design + white

Color: seven color + white

Prism: rotating prism

Stroboscopic: double disc dimmer, strobe 1-10 per second, speed control

Thermal protection: 85 through thermal protection thermostat

Focus: linear zoom

Trimming: horizontal, vertical rotation Angle of 1.8 degrees

Reset: horizontal, vertical rotating and photoelectric reset system, automatic error correction function

Horizontal rotation: biggest 540 degrees

Vertical rotation: biggest 270 degrees

Speed: horizontal, vertical speed adjustable 0-255

Color plate with rainbow effect

Flow pattern plate with effect

Dimension: L570 * H380mm W470

Packing size: L590 * H500mm W560

Net weight: 30.5 kG gross weight: 33.6 kG
