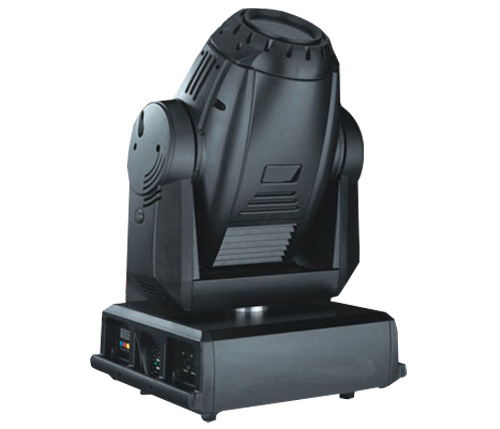

Model:S-2325

Technical parameters:

Voltage: AC220-50-60 hz, 230 v (can be customized according to customer requirements)

Light source: HMI 1200 w/S short arc discharge

Power: 1500 w

Size of lamps and lanterns: H760MM W410 L500 * *

Carton size: H900MM W605 L620 * *

Air box size: H910MM W480 L610 * *

Net weight: 52 KGS

In compliance with CE standard and GB7000.15-2000 standard

Performance characteristics

18 control channel, international standard DMX512 signal

LCD English display system, can be very intuitive set personalization capabilities

Color plate 2, white color + 7, one-way rainbow effect

Fixed pattern plate of 1, has the pattern jitter, one-way flow effect

1, pattern plate rotating pattern jitter, one-way flow effect

Prism prism plate 1, a variety of choice, mirage effect of god

Effect 1, temperature (6000 k), temperature (3200 k), atomization, prism effect

0 ~ 100% linear mechanical dimmer, strobe speed 1 ~ 12 times per second,

Built-in frequency ShanHong effect

Electric aperture linear calibration beam size 5 ~ 100%.

Beam Angle: 14 ° ~ 24 ° linear variation regulation

Electronic linear focusing 2 meters to infinite

Level 450 °, 270 ° vertically, 16 bit resolution is 16 bit resolution

Horizontal, vertical, using light lotus root reset system, after the misoperation accident happen, can automatically retrieve reparations

Good heat dissipation system fully, and overheating protection measures

With photoelectric detection, light bubble delay, has protective function to the lamp and control system, improve the stability of lamps and lanterns

Through external console window or lamp before body end plate control, store editor to run the program to the CPU in the body,

Without control table can also be run programming or run a program that can be stored for eight scenes.

Set the security password for the client, can show light bulbs and lamps and lanterns use time
