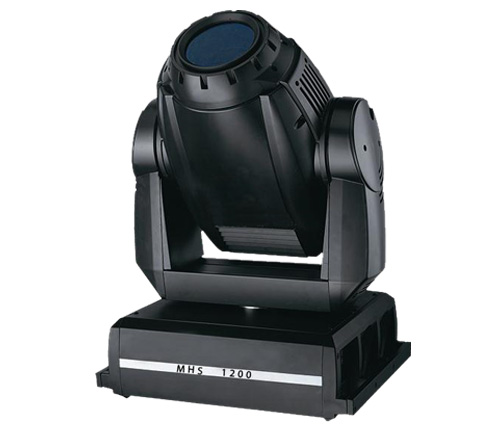

Model:S-2326

The input voltage: AC220 50/60 hz - 230 - v

Consumed power: 1500 w

Light bulb specifications: HMI 1200 w/S

Size of lamps and lanterns: L500 * H760mm W410

Carton size: L620 * H900mm W605

Air box size: L610 * H910mm W480

53 kg net weight:

Performance characteristics

Display: LCD blue screen, can be very intuitive to set personalization capabilities

Colours: 1 color plate, basic color 7 color + white light half color effect, linear effect, adjustable speed double rainbow effect

Color: CMY (3 colors) combination effect, colour is infinite. CMY. Infinite mixed color system.

Soft light slice, atomization effect. Figure case: rotating pattern plate:

4 + white light design, can replace, the index function, the design of dithering, reversible variable rotation, forward automatically rotate speed

Fixed pattern plate: four design + white light, replaceable, one-way variable speed water effect, pattern dithering

Fixed pattern outside diameter size: 64 mm, fixed pattern size: 54 mm

Rotation pattern outside diameter size: 53 mm, rotating design effective size: 48 mm

Mirror plate edges: white light, a second prism, a four prism, comet prism, gradient lens.

Focus: DMX linear adjustment, dimming: double call light

Stroboscopic: 0.3 ~ 10 times/SEC

Vertical direction of rotation Angle: horizontal 450 °, 270 °

Beam Angle: 13 ~ 24 ° linear adjustment

Control mode: international standard DMX512 signal, 24 control channel

Other facilities: horizontal, vertical, adjustable speed, horizontal and vertical

The light lotus root reset system, after the misoperation accident happen, can automatically retrieve position, good heat dissipation system fully, overheating protection measures

With photoelectric detection, light bubble delay, has protective function to the lamp and control system, improve the stability of lamps and lanterns

Through external console window or lamp before body end plate control, store editor to run the program to the CPU in the body,

Without control table can also be run programming or run a program that can be stored for eight scenes.

Set the security password for the client, can show light bulbs and lamps and lanterns use time
