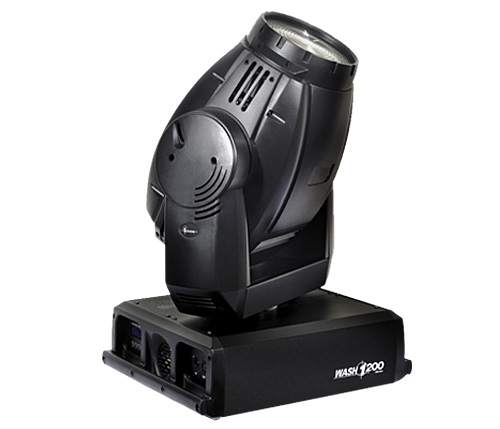

Model:S-2320

Voltage: AC220-50-60 hz, 230 v

The light bulb: HMI1200W/S total power: 1500 w

Insurance: 20 a color temperature: 6500 k

Lamp holder, high temperature resistant plastic king

Size of lamps and lanterns: L500 * H760mm W410

Carton size: L620 * H900mm W605

Air box size: L610 * H910mm W480

49 kg net weight, gross weight: 62 kg

Performance characteristics

Channel: 16 control channel,

Standard DMX512 signal

Light stroboscopic/dimmer: single chip tuning,

1-10 times per second can be variable speed stroboscope

Color plate: 5 color + white light, is equipped with rainbow effect

CMYk color mixture: full CMYk color mixing is a new design of the system. Four harmonic color of lens, magenta, cyan, yellow and color temperature are in the same

A plane movement. Mechanical short distance makes color spread quickly.

Thermal protection: 130 ℃ overheating protection

Trimming: horizontal, vertical, 1.8 °

Reset: horizontal, vertical, rotary adopts photoelectric reset device, with automatic error correction function.

Horizontal rotation Angle of 450 °

Vertical rotation Angle of 270 °

Focus: linear zoom

Through external console window or lamp before body end plate control, editor of memory to run the program to the CPU inside the lamp, and no control table can also run a programming or shipment

Program, you can store the eight scenarios. Set the security password for the client, can show light bulbs and lamps and lanterns use time
