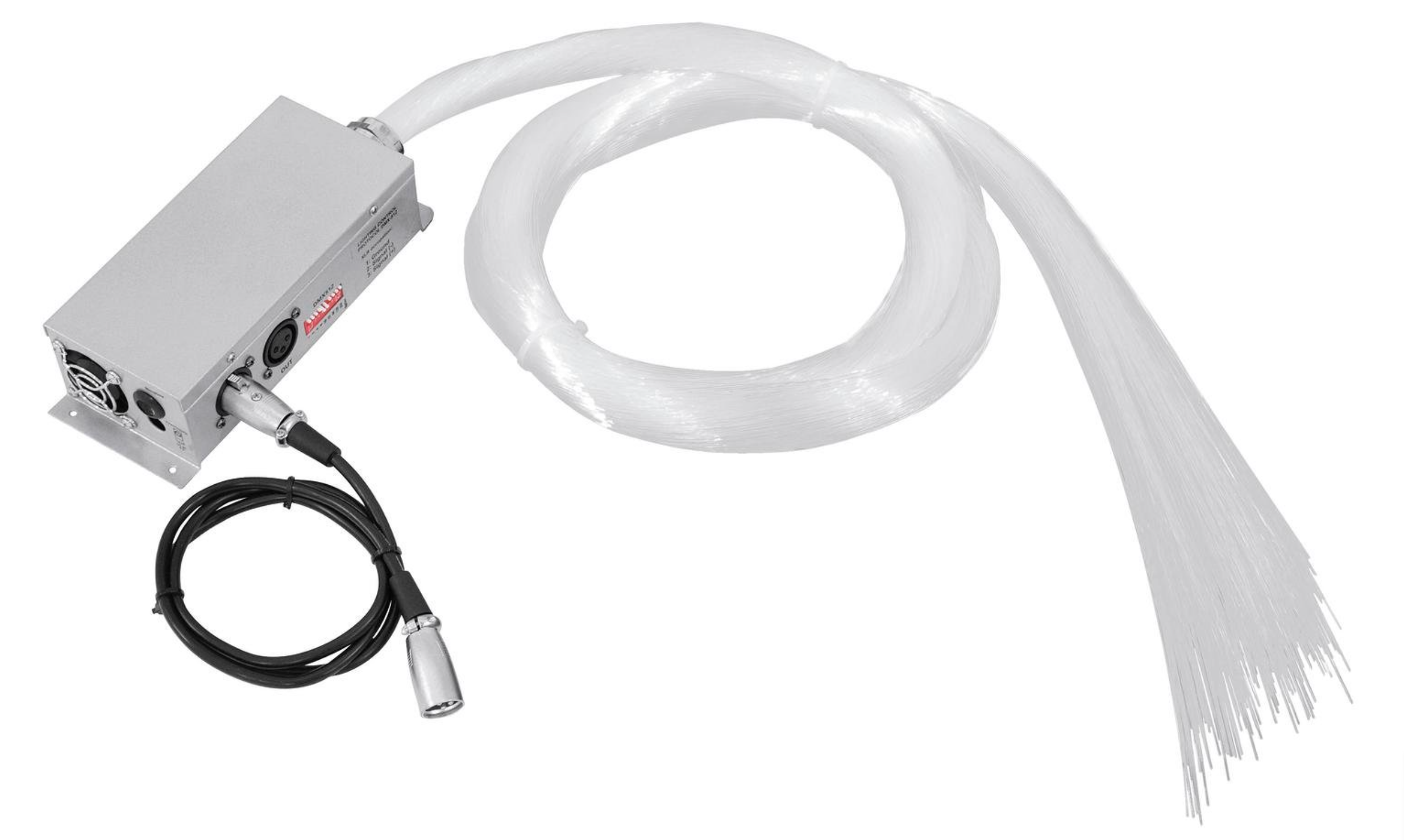

EUROLITE FIB-450 LED Fiber Light RGB DMX Fiber Optic Light with RGB Color Changing and DMX Contro
Features:------------
fiberglass strands are bundled together and fixed to a lighting fixture Light is transmitted through the fiberglass strands to
then shine at the ends Advantages of LED technology: long service life, low total connected load, minimal heat generation,
virtually maintenance-free with brilliant dispersion 1 powerful LED 9 W high-power 3in1 TCL RGB The device is cooled
via fans Controllable via stand-alone; DMX; Music control via microphone, color selection manual; Color change adjustable;
Color blending adjustable; Dimmer electronic stroboscopic effect Already pre-programmed with LED PC-Control 512 For
applications such as: Clubs/dance schools; Party cellar; Restaurants, bars and hotels Silent operation Scope of delivery
1 x device, 1 x external power supply, 450 x fiber optic strands, 1 x XLR cable, 1 x user manual Technical data:
Power supply: 5 V DC Total connected load: 12 W Degree of protection: IP20
|
Power
supply: |
5
V DC |
|
Total
connected load: |
12
W |
|
Protection: |
IP20 |
|
Bus
bar: |
Power
supply via barrel plug (M) Built-in version Power connection cable with
plug-in power supply (supplied) |
|
LED
Type: |
1
x 9 W high-power 3in1 TCL RGB |
|
DMX
Channels: |
4 |
|
DMX
Input: |
1
x 3-pin XLR (M) built-in version |
|
DMX
Output: |
1
x 3-pin XLR (W) built-in version |
|
Cooling: |
Fan |
|
Control: |
Stand-alone;
DMX; Music control via microphone |
|
Pre-programmed
for: |
LED
PC-Control 512 |
|
Plug
Type: |
3-pin
XLR (W); 3-pin XLR (W) |
|
Fiberglass
strands: |
450
Pieces |
|
Housing
color: |
Silver-grey |
|
Diameter
mounting holes: |
4
x ＆#216;4mm |
|
Material: |
Metal,
1 mm |
|
Weight: |
990
g |
|
Noise
classification: |
Class
0 (no noise at all); class 2 (light noises) |
|
Photobiological
safety: |
Risk
group 0 |
|
Device |
|
|
Metrics: |
Width:
19.5 cm |
|
External
power supply |
|
|
Power
supply: |
100-240
V AC, 50/60 Hz |
|
Pinout: |
Inside
+ / Outside - |
|
Cable
length: |
Approx.
1.5 m |
|
Exit: |
5
V DC; 2.5 A; |
|
Color: |
Black |
|
Fiberglass
strands |
|
|
Metrics: |
Length:
2 m |
|
XLR
Cable |
|
|
Cable
length: |
Approx.
1.2 m |
|
Plug
Type: |
3-pin
XLR (W); 3-pin XLR (M) |
|
Color: |
Black |
|
Legal
Specifications |
|
|
Special
product: |
Not
intended for ambient lighting in households |
|
Use: |
Lighting
for show effects |
Packaging
|
PACK |
EAN |
Weight |
Dimension |
|
1 |
4026397388510 |
1.10 kg |
25cm x 29cm x 5cm |
|
12 |
4026397388527 |
14.55
kg |
59.5cm
x 37cm x 34cm |
