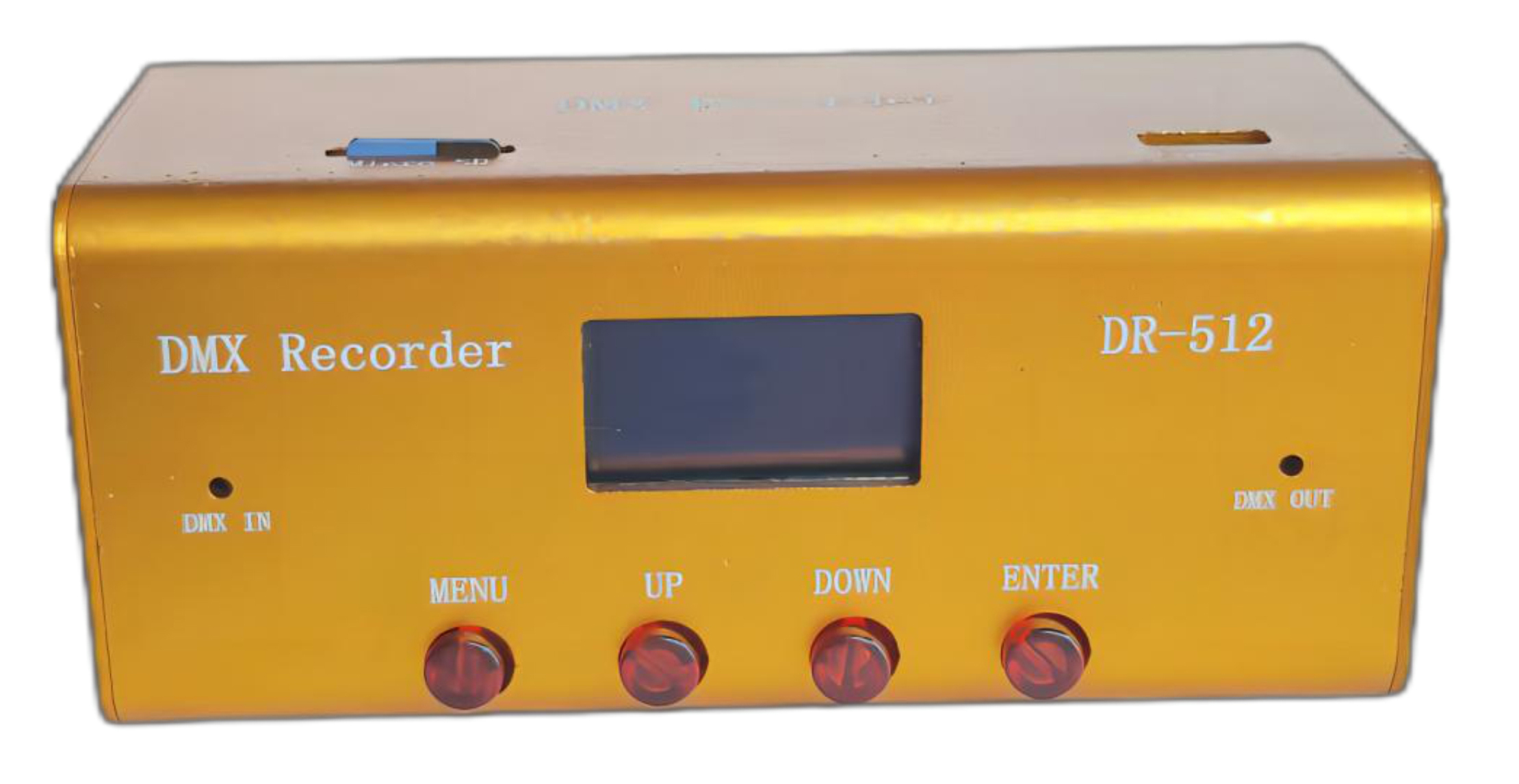

1. This is a multi-functional tool that integrates DMX
signal recording and playing, DMX signal analysis, DMX
signal amplification, and line stability packet loss
test.
2. One group of DMX512 signal recording and playing
interfaces, which can control 512 channels, support
multiple synchronous use, and can be expanded to
1024,2048 channels.
3. DMX recorder can record the effect of equipment with DMX
output (not limited to ARTNET protocol software, console,
mobile phone and other equipment)
4. The DMX console host device can be accessed to call the
recorded effect through the mobile
phone/computer/console.
5. 32G storage SD card can record 255 effects to meet the
application needs of different scenes
6. DMX recorder is a channel table function (1-channel
effect, 2-channel total dimming)
7. Displays the current DMX channel &#118alue, the total
duration of the effect, and the current effect run times
8. DMX512 signal detector, three indicators to determine
whether the signal line has output (channel number,
channel &#118alue, refresh rate), lighting troubleshooting
essential tools.
9. Signal line packet loss test can be carried out (to
evaluate the stability of the lighting line)
