PRODUCTS

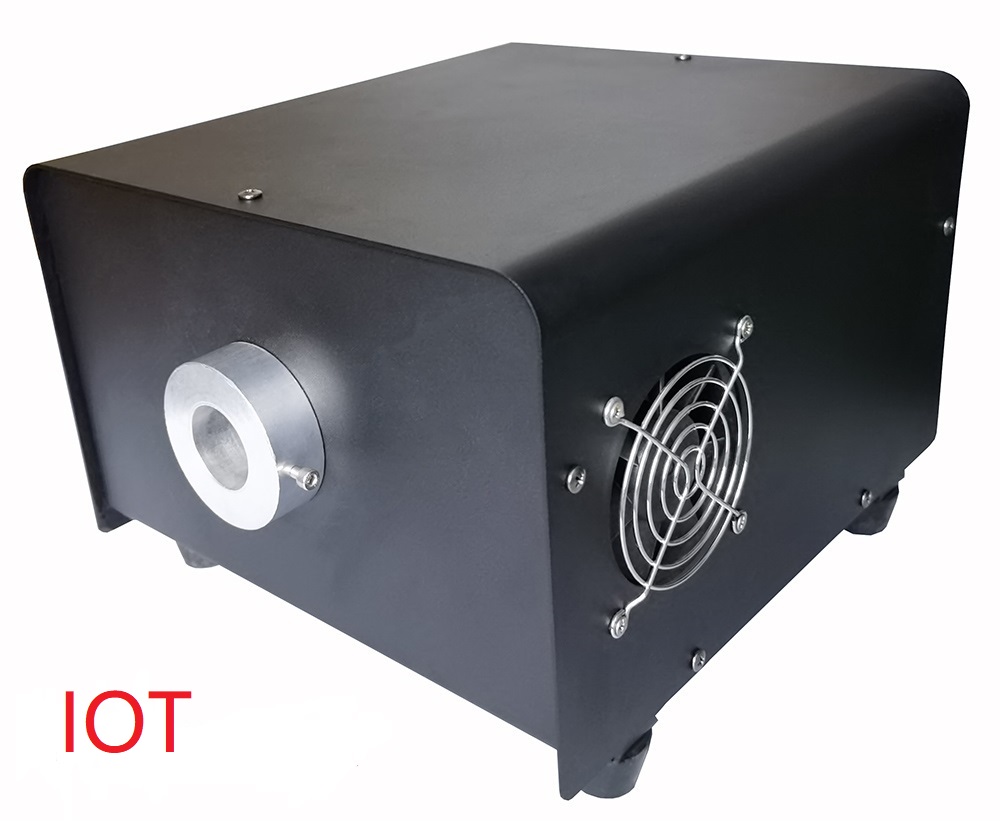

R1600
R3000
Port Connector: 30mm diameter
Fiber Type: Glass / PMMA
Supply voltage: 110-240 VAC, 47-63Hz
Color: W/RGB/RGBWC(Red, Green, Blue, White, and Cold)
Power Supply: External 36V DC 5A
LED power: 1 x 160W-300W
LED Lifespan: 50,000 hours in ambient 25°C
Control / Effects: Dimming with DMX, 0-10V and manual control，IOT,Bluetooth
Compatible with third-party language controls:Google，Amazon,Alice,SmartThings,Olisto,Philips Hue and IFTTT
Enclosure material: Aluminum
Shell color:Black, Silver, White
Size:L280*W255*H198mm
Both Android and Apple phones can scan the QR code to download the app
For Apple system: go to the App Store to download the App
For Android system: go to the Google Play Store to downloadthe App.
Connect your Bluetooth device with the app
a. Turn on Bluetooth on your mobile phone
b. Power on the light engine
c. Open the App on your mobile phone
d. The App will automatically connect to light engine
Important notes
Do not connect your mobile phone manually to the light engine in your mobile phone's
Bluetooth settings
One mobile phone can connect to and control multiple light engines, but one light engine
can only be connected to and controlled by one mobile phone at a time.
