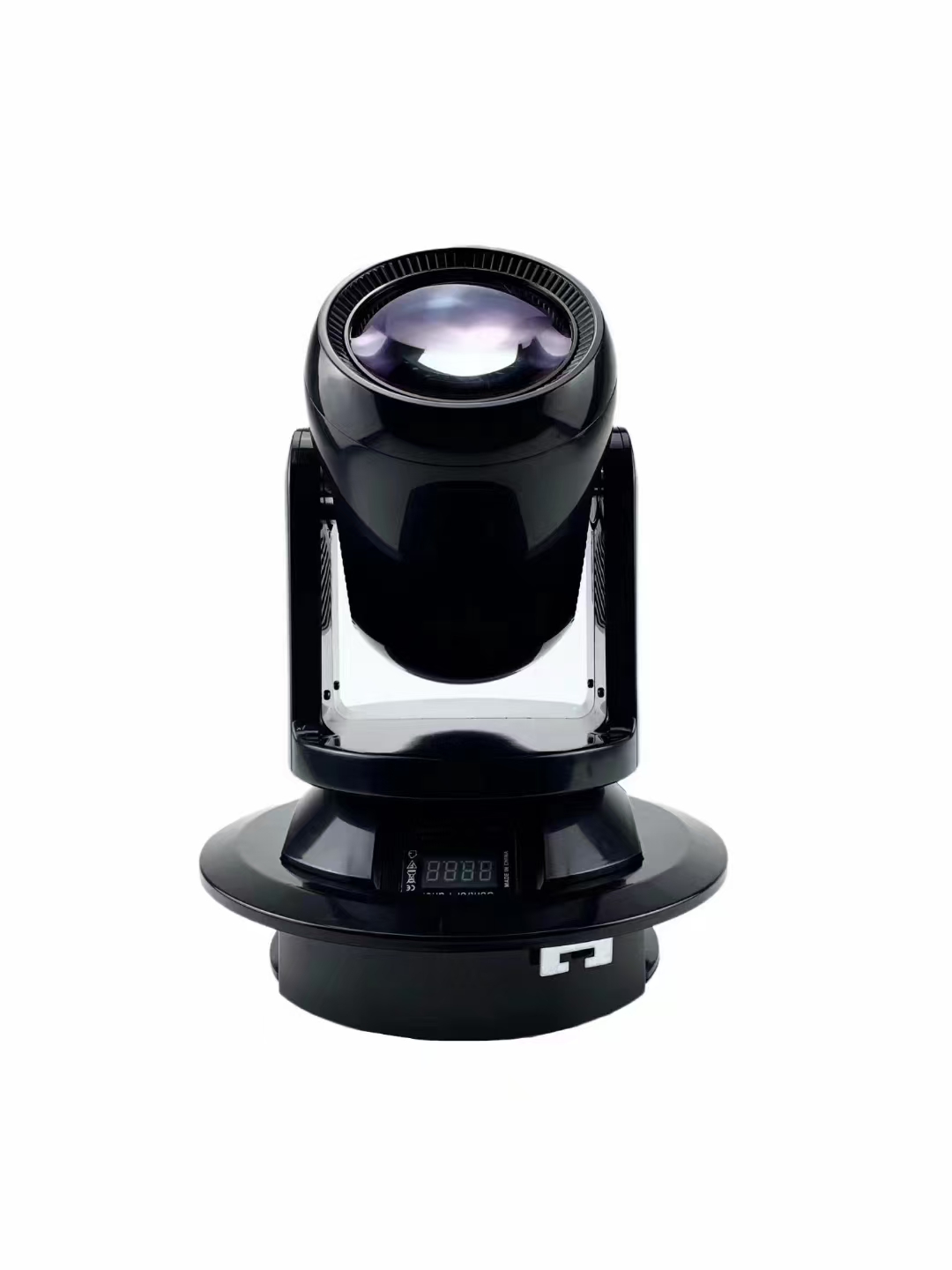

S-6437
Input voltage: AC100~250V, 50/60Hz
Rated Power: 180W
LED light source: 100W one
Rated life: about 50000 hours
Color: One color palette, 7 colors + white light
Pattern: one pattern plate, 7 kinds of metal pattern pieces + white light
Prism: 16 prisms
Beam angle: 1.5 degrees
Dimming: 0~100% linear dimming
Electronic strobe: 0 ~ 25 times / s, and can adjust the strobe speed
Communication signal: standard DMX512 signal, RJ45 interface
Control mode: self-propelled mode, DMX mode, master-slave mode, voice-activated mode
DMX channels: 12 channels
540° horizontally and 180° vertically
Working environment: indoor use
Cooling mode: forced air cooling
Installation mode
Plug-in installation: with professional installation pendant installation; The top needs to be reinforced with woodworking boards
Embedded installation: Luminaire cut-out size ◎ diameter 245mm
