PRODUCTS

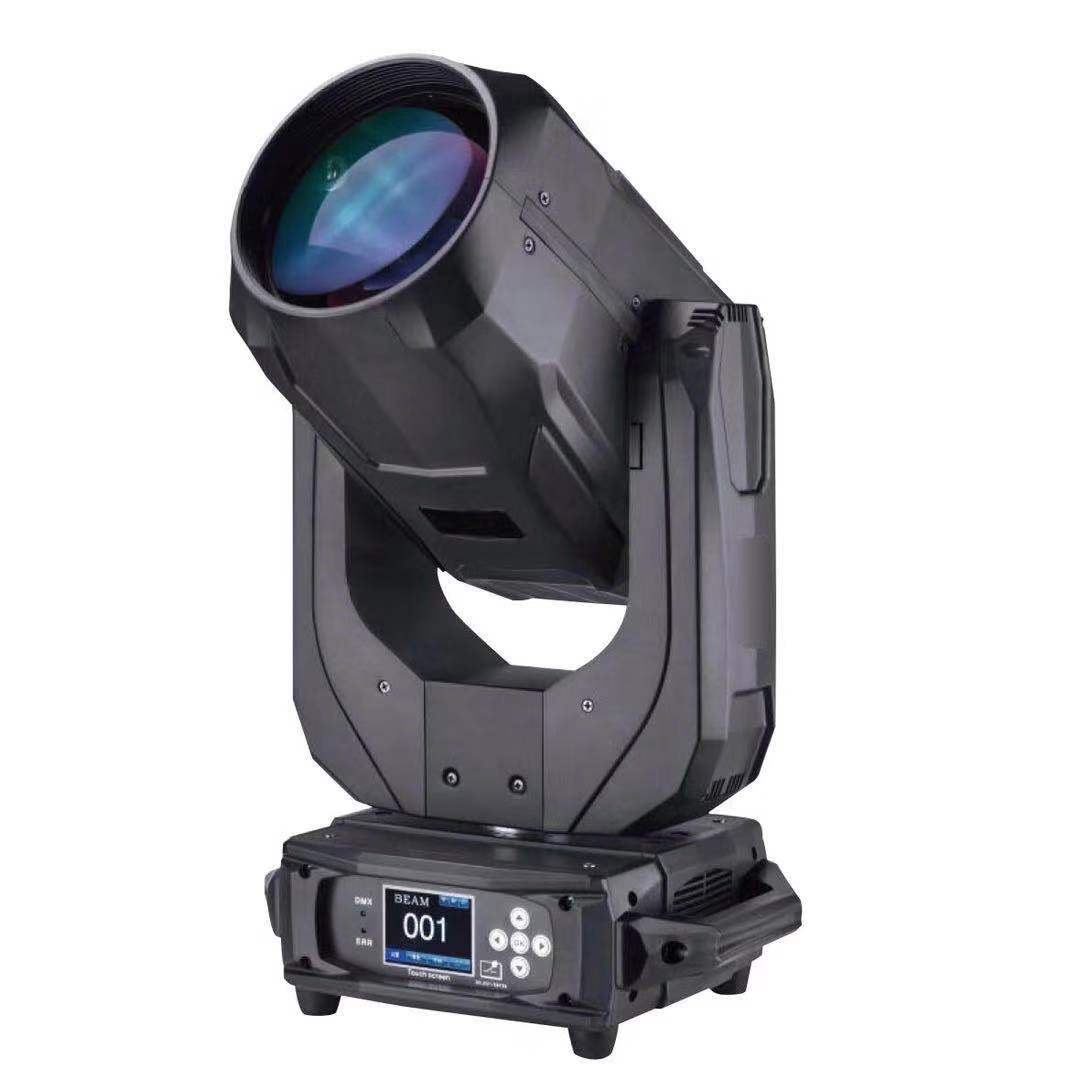

S-2225
Light source power: 280W;
Rated power: 350W (high efficiency and reliable switching power supply);
Power supply: high efficiency and reliable switching power supply;
Color disc: one color disc, each composed of 14 color chips + white light;
Pattern disc: 14 pattern effects, 9 rotating pattern effects;
The effect wheel has two prisms that can rotate independently in positive and negative speed regulation; You can overlap more effects
Colorful effect + atomized dyeing effect
Dimming: 0-100% electronic dimming;
Stroboscopic: support mechanical stroboscopic and adjustable speed stroboscopic effects, and support stroboscopic macro functions;
Lens group optical system, electric focusing, beam angle 0-5 ° linearly adjustable;
Photoelectric reset system is adopted, which can automatically retrieve and reset after accidental misoperation;
Three phase motor: horizontal 540 °, resolution 8bit / 16bit; Vertical 270 °, resolution 8bit / 16bit; Quick mute
Overheating protection;
Control mode: DMX512 / master-slave / automatic;
Protection grade: IP20
Cooling system: forced convection cooling by fan;
Control channel: 17 channels
RDM signal bidirectional transmission technology can realize software upgrade and set and change the lamp address code on the control console
