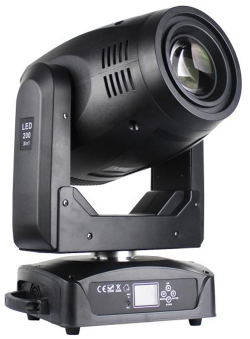

S-6456
Performance characteristics
Channel mode: DMX512 interface, 20 channels
Color wheel: 8 monochrome + white light + Half color mixing + rainbow effect
Rotating pattern disc: 2 Glass patterns + 5 metal patterns
+White light + rainbow effect, vibration effect
Fixed pattern disc: 8 fixed patterns + white light, rainbow effect and vibration effect
Effect disc 1: adjustable rotation speed and direction + rainbow effect
Effect disc 2: colorful effect disc + atomization effect
(the rotation speed and direction of the colorful effect disc are adjustable)
Effect disc 3: prism and octaprism, which can be overlapped
(the rotation speed and direction are adjustable)
Zoom in: linear zoom in
Stroboscopic: 0-20 times / second
Dimming: 0-100% electronic dimming
Focusing: electric focusing
Control mode: DMX512 / voice control / master-slave / self-propelled
Horizontal: 540 ° / 360 ° / 180 °,
8 / 16 fine adjustment, electronic error correction
Vertical: 270 ° / 180 ° / 90 °,
8 / 16 fine adjustment, electronic error correction
It integrates the functions of light beam, pattern and dyeing
structure
Signal input and output: three core XLR socket
Power outlet: powercon
Motor: three phase motor
technical parameter
Working voltage: AC 100v-240v 60 / 50Hz
Power consumption: 350W
