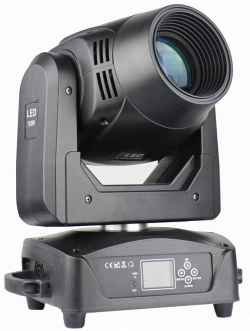

S-6451
Channel mode: DMX512 interface, 16 channels
Color wheel: 8 monochrome + white light + Half color mixing + rainbow effect
Rotating pattern disc: 7 rotating patterns + white light, rainbow effect and vibration effect
Fixed pattern disc: 8 patterns + white light, rainbow effect, vibration effect
Effect disc 1: magnification (zoom lens) + atomization effect
Effect disc 2: rotating prism
(the rotation speed and direction are adjustable)
Stroboscopic: 0-20 times / second
Dimming: 0-100% electronic dimming
Focusing: electric focusing
Control mode: DMX512 / voice control / master-slave / self-propelled
Horizontal: 540 ° / 360 ° / 180 °,
8 / 16 fine adjustment, electronic error correction
Vertical: 270 ° / 180 ° / 90 °,
8 / 16 fine adjustment, electronic error correction
It integrates the functions of light beam, pattern and dyeing
structure
Signal input and output: three core XLR socket
Power outlet: powercon
technical parameter
Working voltage: AC 100v-240v 60 / 50Hz
Power consumption: 225W
Light source: 150W white LED
Beam angle: 2 ° - 3 ° / 5 ° - 6 ° / 8 ° - 14 ° (zoom lens)
Pattern angle: 8 ° - 14 ° (zoom lens)
Dyeing angle: 8 ° 20 ° (zoom lens)
Net weight: 8.9 kg
