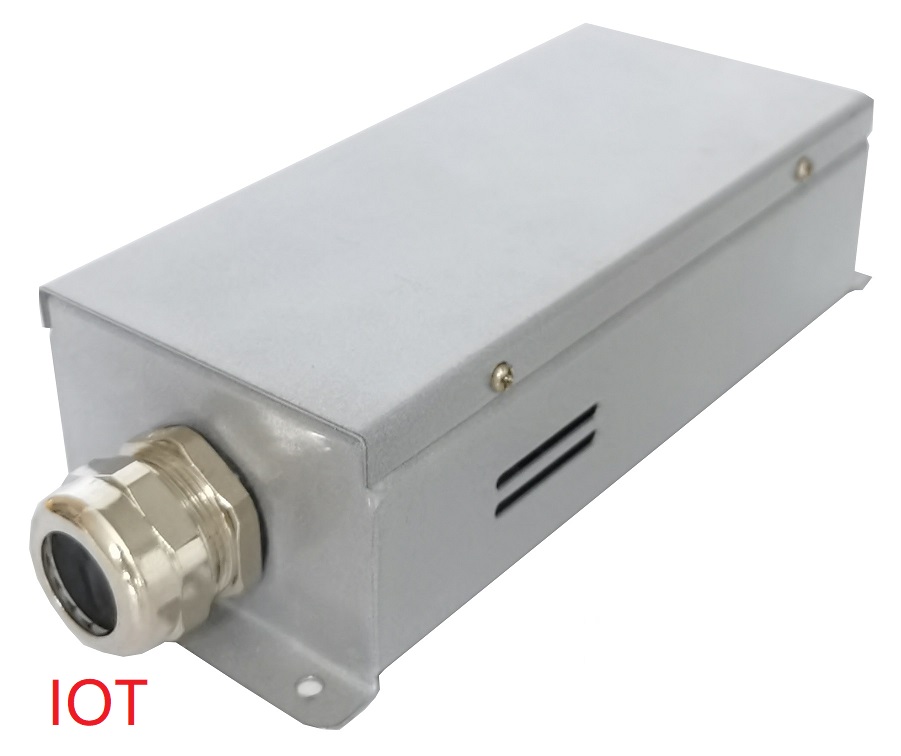

IOT 15W Fiber optic Illuminator

Detail Info

R155

Port Connector: 17mm diameter ＆#216; 0.75mm * 450 Pieces

Fiber Type: Glass / PMMA / PS

Supply voltage: 110-240 VAC, 47-63Hz

Color: RGBWC(Red, Green, Blue, White, and Cold)

Power Supply: External 5V DC 2.5A

LED Type: 1 x 15 W high-power 5in1 TCL R：1*3W G：1*3W B：1*3W

W: 1*3W C：1*3W

LED Lifespan: 50,000 hours in ambient 25°C

Control / Effects: IOT,Bluetooth

Compatible with third-party language controls:Google，Amazon,Alice,SmartThings,Olisto,Philips Hue and IFTTT

Shell color:Black, Silver, White

Size:L210*W80*H50mm

IOT and Bluetooth（No need for networking） control：

Both Android and Apple phones can scan the QR code to download the app

For Apple system: go to the App Store to download the App

For Android system: go to the Google Play Store to downloadthe App.

Connect your Bluetooth device with the app

a. Turn on Bluetooth on your mobile phone

b. Power on the light engine

c. Open the App on your mobile phone

d. The App will automatically connect to light engine

Important notes

Do not connect your mobile phone manually to the light engine in your mobile phone's

Bluetooth settings

One mobile phone can connect to and control multiple light engines, but one light engine

can only be connected to and controlled by one mobile phone at a time.

Power  supply: 5 V DC
Total connected load: 12W
Protection: IP20
Bus bar:   Power supply via barrel plug (M) Built-in version Power connection
cable with plug-in power supply (supplied)
Cooling: Fan
Housing color: Silver-grey
Diameter mounting holes: 4 * ＆#216;4mm
Material： Metal, 1 mm
Weight： 1 kg
Noise classification：  Class 0 (no noise at all); class 2 (light noises)
Photobiological safety：   Risk group 0

External power supply

Power supply： 100-240 V AC, 50/60 Hz

Pinout： Inside + / Outside -

Cable length: Approx. 1.5 m

Exit: 5 V DC; 2.5 A;

Color: Black
